Ryu's Choice

Crown 309FJ Lever

Crown 309FJ Lever

$45
$45
Sale Sold out
🚚 Free Shipping
📦 5–15 Business Days
💳 All Taxes Included
🔒 Secure Checkout
Shaft Color
Extra Grommet
5-Pin to 8-Pin Conversion Cable
Quick Overview
  • Traditional Korean arcade lever
  • Widely used by Tekken players
  • Flat (no-collar) design with FJ mounting bracket
  • Smooth circular movement with round guide
  • Wider neutral range than the 303 lever

A premium Korean lever widely trusted by competitive Tekken players.

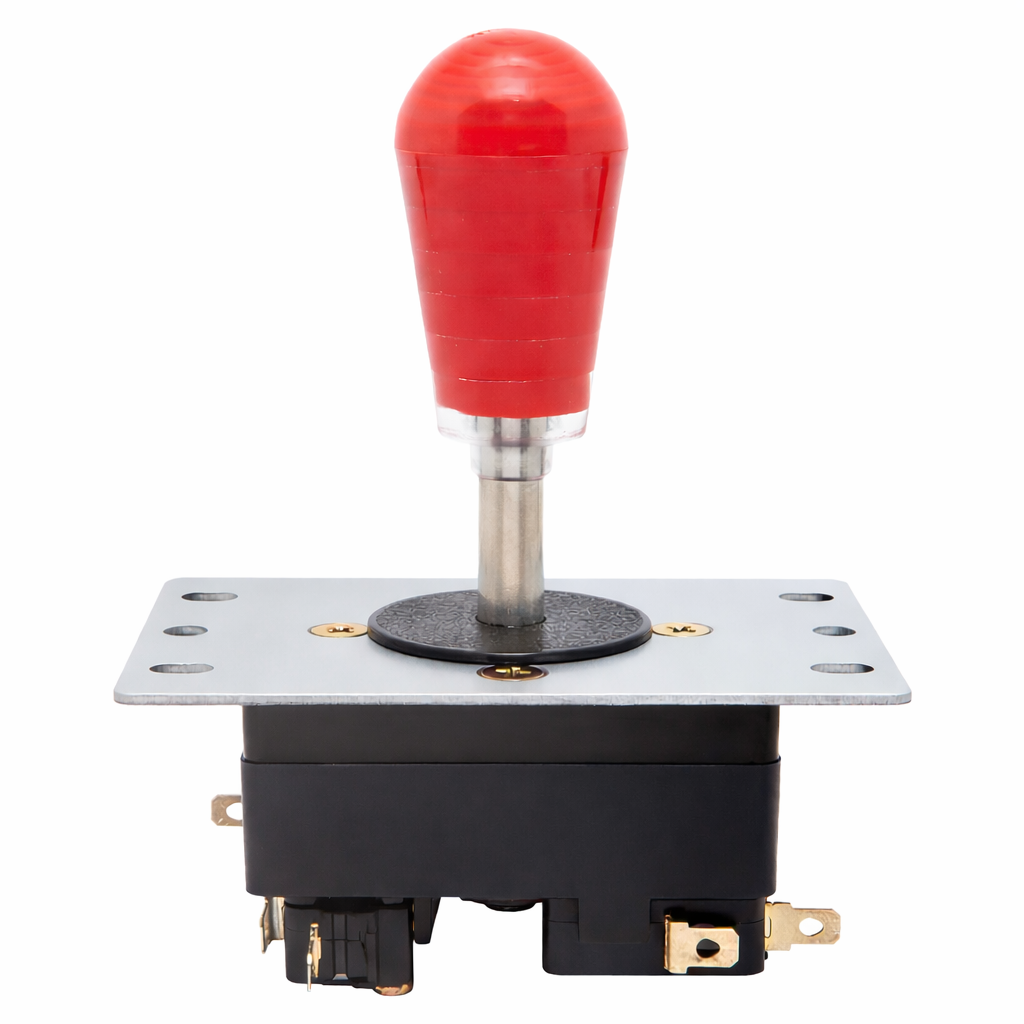

The 309 lever is a Samducksa model developed specifically for Tekken. Following the release of Tekken 7, it quickly became one of the most sought-after models in the Samducksa lineup.

Compared to the 303 lever, the 309 offers a wider neutral range.

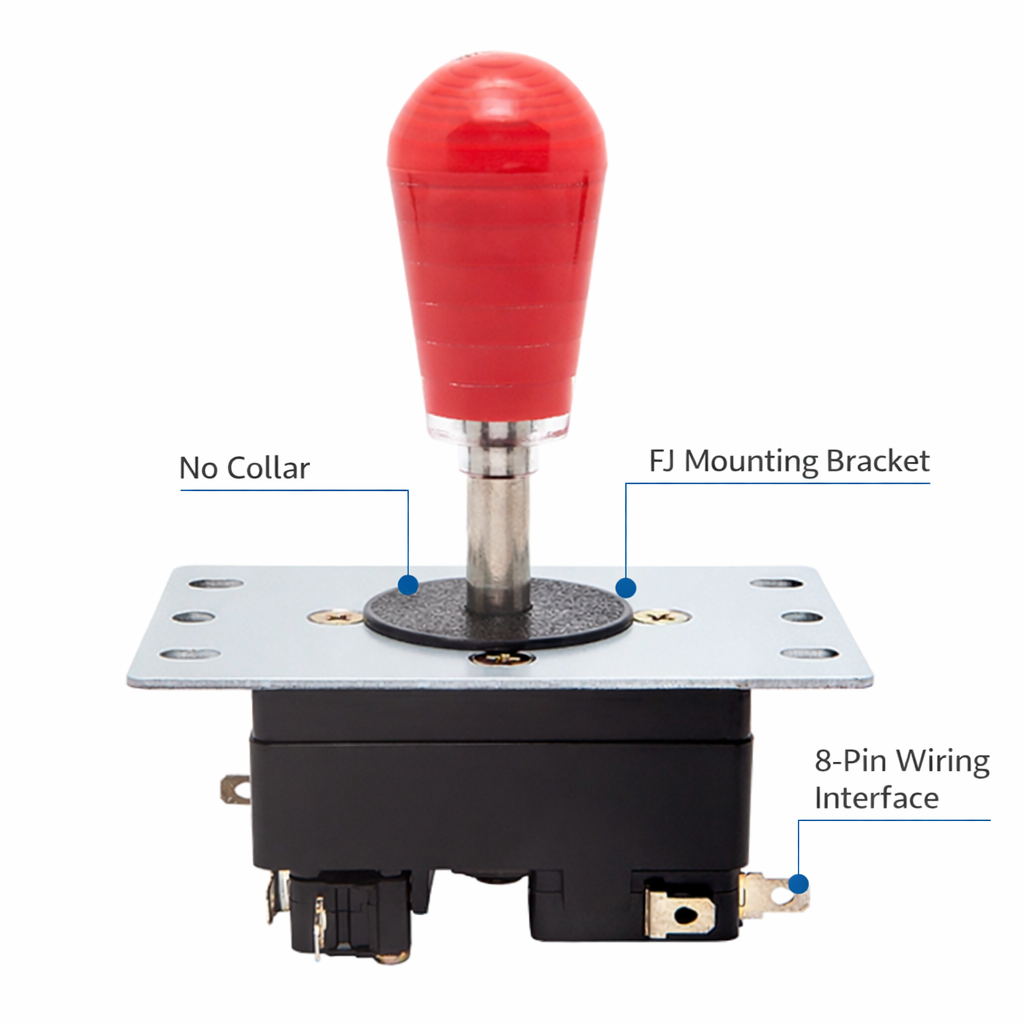

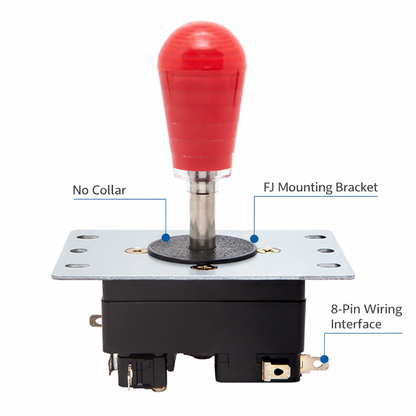

The 309FJ lever is the same 309 model but designed without a collar (flat type).

It is equipped with a Sanwa-type FJ mounting bracket, allowing seamless compatibility with most fightsticks on the market.

Specifications

Model CWL-309FJ
Manufacturer Samducksa
Country of Origin Republic of Korea
Grip Type Battop
Collar None (Flat)
Guide Type Round
Mounting Plate FJ Bracket
Body Height 39 mm (excluding grip and shaft)
Switch Gersung GSM-V1623A3
Connection 8-Pin Interface

*Measurements may vary by 2–3 mm depending on measurement method.

Tension Grommet Options

The tension grommet controls lever resistance and return force. Available in the following strengths:

Color Rating Feel
Gray 15 Extremely Soft
Green 20 Very Soft
White 25 Soft
Violet 30 Slightly Soft
Blue 35 Medium
Red 45 Firm

*Actual tension feel may vary by user.

Recommended Settings
  • 2D Fighting Games: 20, 25
  • Tekken Series: 30, 35

FJ Bracket

This lever comes equipped with the FJ bracket manufactured by Samducksa. The mounting hole spacing is nearly identical to standard Sanwa-type brackets, allowing seamless installation in most fightsticks on the market.

Round Guide

This lever uses a round internal guide that allows smooth circular motion. Unlike gated designs, the round guide does not restrict movement to fixed corners, providing a more fluid control style commonly used in Korean arcade machines.

Handle Color Options

Available in the following colors:

  • Red
  • Blue
  • Yellow
  • Purple
  • White
  • Black

Compatibility Notice

If your fightstick is currently using a Sanwa JLF or any standard 5-pin lever, a 5-pin to 8-pin conversion cable is required.

This lever uses an 8-pin interface and is not directly compatible with standard 5-pin harnesses.

Conversion cable is not included.

Assembly & Customization

35 grommet is included by default. Additional grommet options are available separately if needed.

We carefully configure and inspect every unit to ensure proper installation and performance.
